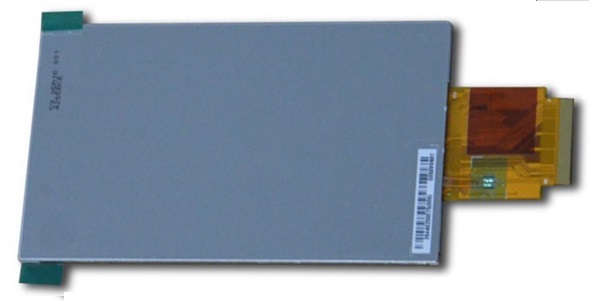

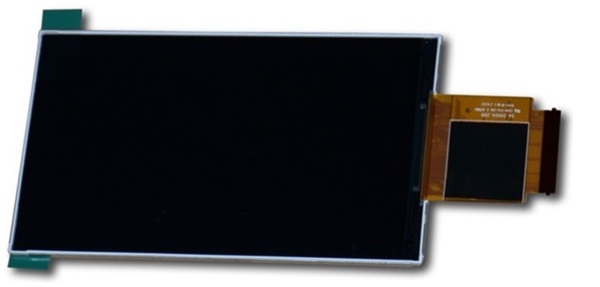

5'' 480x800 TFT vertical LCD display G050VVN01.0
A grade new original,12months warranty
Brand Name: AUO
Luminance(nits): 450
Contrast(%): 700
Display Mode: MVA,normally black,transmissive
Viewing Angle: 80/80/80/80
Interface: Digital Parallel 8-bit(Parallel RGB+SPI)
Operation Temperature: 0~70℃
Outline Dimension: 71.2*119.5*2.5(mm)
Surface: Anti-glare,Hard coating(3H)
Introduction
G050VVN01.0 is a 5 inch color TFT LCD designed with MVA technology. The screen format is intended to support WVGA(480xRGBx800) resolution and 16.7M (RGB 8bit) colors. It is composed of a TFT-LCD panel,driver ICs,control and power supply circuits board and a backlight unit including LED driving circuit.
Packaging Form:
Amount Per Box: 130pcs
Box Size:528(L) x 348(W) x 266(H) (mm)
Box Gross Weight:11.5kgs
Payment Terms: 100% in Advance
Shipping Methods:
