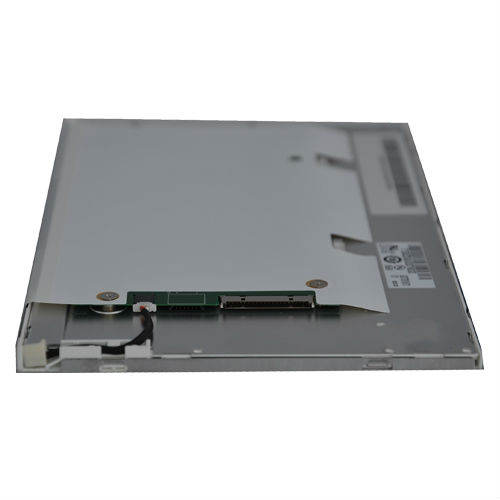

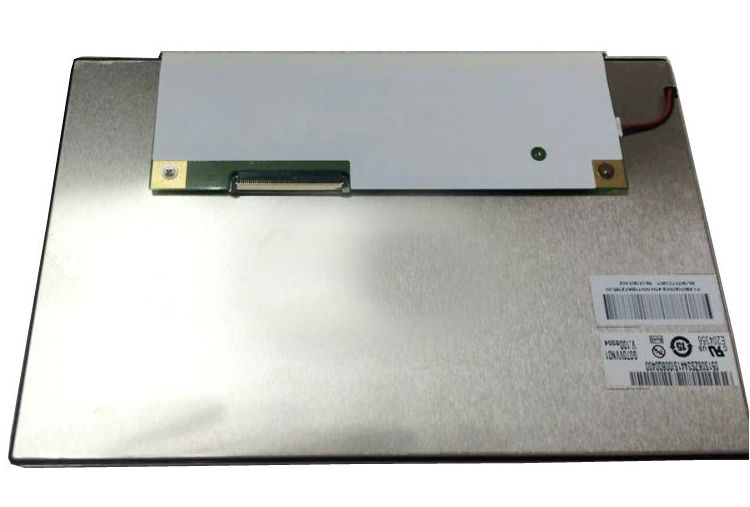

7'' 800x480 RGB interface industrial LCD screen G070VVN01.1
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 450
Contrast(%): 1500
Display Mode: AMVA3,normally black,transmissive
Viewing Angle: 80/80/80/80
Interface: Digital Parallel 6/8 bit
Operation Temperature: -20~70℃
Outline Dimension: 164.55*104.71*8(mm)
Surface: Anti-glare,Hard coating(3H)
MOQ:1PC
Introduction
General Description:
G070VVN01.1 is a 7.0 inch color TFT LCD with AMVA(Advanced MVA) technology module.It is composed of a TFT-LCD panel,driver ICs,PCB with power supply circuit and backlight unit.
This module is designed for display units for Industrial Applications.
The screen format is intended to support the WVGA (800(H) x 480(V)) screen and 16.2M(RGB 8-bits) or 262k colors (RGB 6-bits) by digital RGB interface.
Packaging Form:
G070VVN01.1 is a 7.0 inch color TFT LCD with AMVA(Advanced MVA) technology module.It is composed of a TFT-LCD panel,driver ICs,PCB with power supply circuit and backlight unit.
This module is designed for display units for Industrial Applications.
The screen format is intended to support the WVGA (800(H) x 480(V)) screen and 16.2M(RGB 8-bits) or 262k colors (RGB 6-bits) by digital RGB interface.
Packaging Form:
Amount per Box: 45 pcs
Box Size: 608*361*226 mm(L*W*H)
Box Gross Weight: 10.0 Kgs
Payment Terms: 100% in Advance
