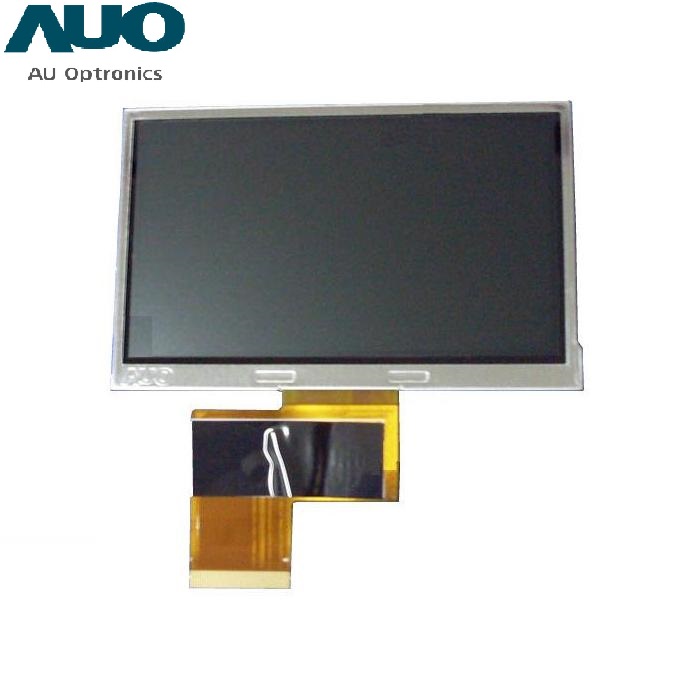

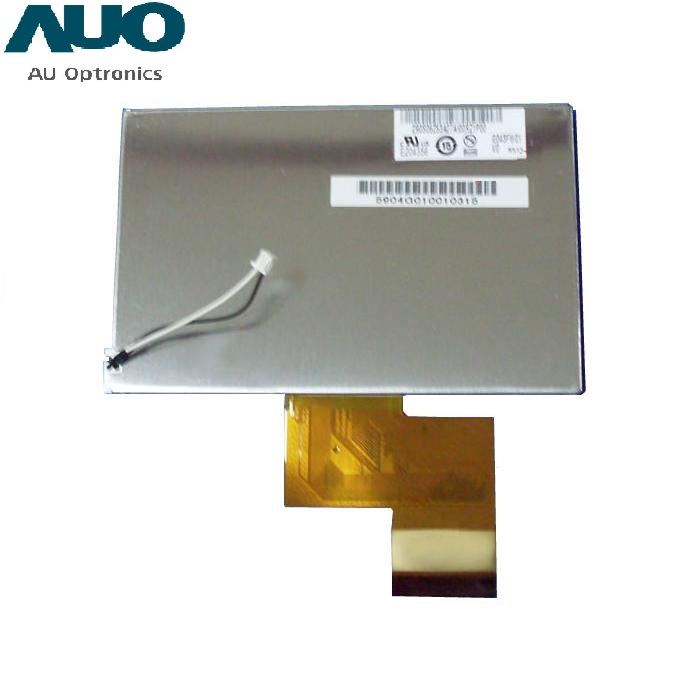

4.3'' 480x272 industrial TFT LCD module G043FW01 V0
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 450
Contrast(%): 400
Display Mode: TN,normally white,transmissive
Viewing Angle: 65/65/50/55
Interface: Digital Parallel RGB 8-bit
Operation Temperature: -20~70℃
Outline Dimension: 105.7*67.4*4.19(mm)
Surface: Anti-glare,Hard coating(3H)
Introduction
General Description:
G043FW01 V0 is a 4.3 inch color TFT LCD mainly designed for Parchinko applications. The screen format is intended to support WQVGA(480xRGBx272) resolution and 16.7M (RGB 8bit) colors. It is composed of a TFT-LCD panel,driver ICs and backlight unit. G043FW01 V0 offers TTL interface for display signal input.
Packaging Details:
Amount per box:90pcs
Box size:520x340x250(mm)
Box gross weight:11.5kgsDelivery Detail: 4~6 weeks
