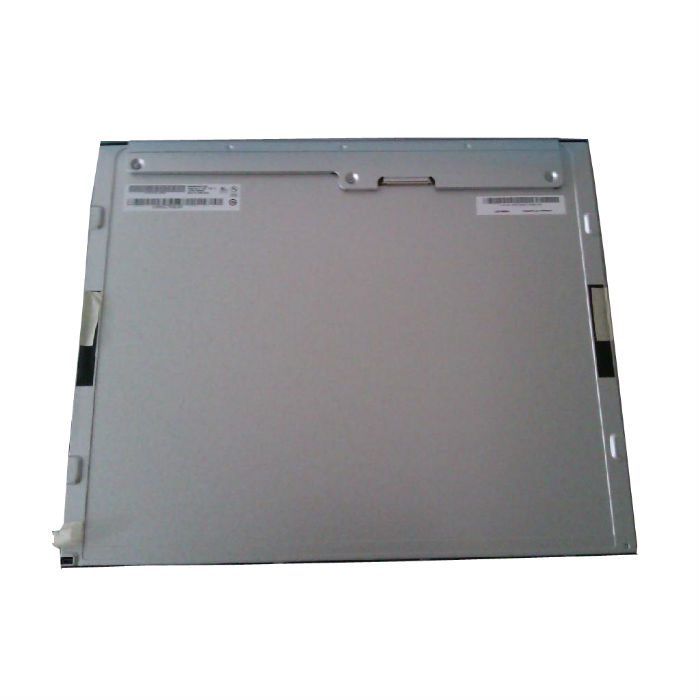

19'' 1280x1024 monitor use LCD panel M190ETN01.0
A grade, new, original, 12months warranty
Brand Name: AUO
Panel mode: TN,normally white,transmissive
Luminance(nits): 250
Contrast(%): 1000
Backlight: LED
Viewing Angle: 85/85/80/80
Interface: LVDS 8 bit,dual channel
Outline Dimension: 396.0*324.0*11.4(mm)
Surface: Anti-glare,Hard coating(3H)
Introduction
General Description:
M190ETN01.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver circuit and a backlight system. The screen format is intended to support SXGA screen and 16.7M colors (6-bits+HiFRC). All input signals are LVDS interface compatible.This LCD module does not contain a driver for LED backlight.
Packaging Form:
M190ETN01.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver circuit and a backlight system. The screen format is intended to support SXGA screen and 16.7M colors (6-bits+HiFRC). All input signals are LVDS interface compatible.This LCD module does not contain a driver for LED backlight.
M190ETN01.0 is designed for a display unit of personal computer/ monitor.

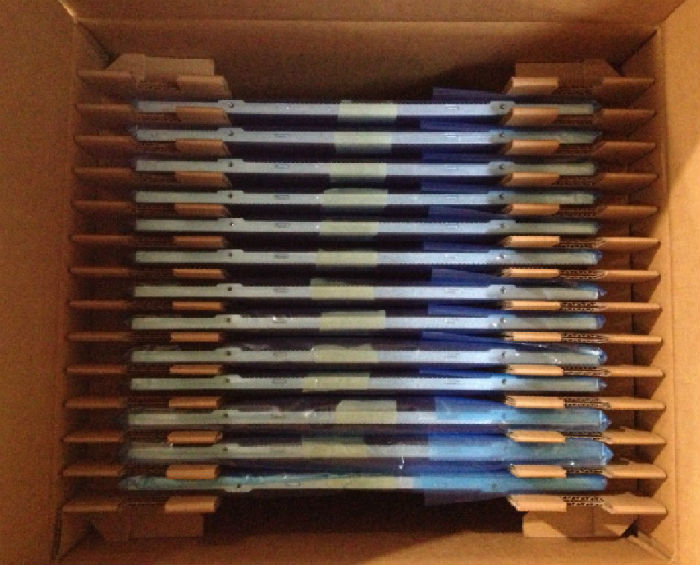

Packaging Form:
Amount per Box:13pcs
Box size: 409 x 367 x 475(mm)(L x W x H)
Box gross weight:26.83kgs
Payment Terms: 100% in Advance
Shipping Methods:
Shipping Methods:
